Normal Distribution: Z-scores

26 July, 2019 - 12:02
Available under Creative Commons-ShareAlike 4.0 International License. Download for free at http://cnx.org/contents/733d1554-5d75-4798-9e54-7dcdc1ee5690@5.40

If X is a normally distributed random variable and X∼N(µ, σ), then the z-score is:

z=\frac{x-\mu }{\sigma }

The z-score tells you how many standard deviations that the value x is above (to the right of) or below (to the left of) the mean, µ. Values of x that are larger than the mean have positive z-scores and values of x that are smaller than the mean have negative z-scores. If x equals the mean, then x has a z-score of 0.

Example 3.1

Suppose X N (5, 6). This says that X is a normally distributed random variable with mean µ = 5 and standard deviation σ = 6. Suppose x = 17. Then:

z=\frac{x-\mu }{\sigma }=\frac{17-5}{6}=2
This means that x = 17 is 2 standard deviations (2σ) above or to the right of the mean µ = 5. The standard deviation is σ = 6.
Notice that:

5+2 · 6 = 17 (The pattern is µ + zσ = x.)


Now suppose x = 1. Then:

z=\frac{x-\mu }{\sigma }=\frac{1-5}{6}=-0.67
(rounded to two decimal places)

This means that x = 1 is 0.67 standard deviations ( 0.67σ) below or to the left of the mean µ = 5. Notice that:

5+(−0.67) (6) is approximately equal to 1 (This has the pattern µ +(−0.67) σ = 1 ) Summarizing, when z is positive, x is above or to the right of µ and when z is negative, x is to the left of or below µ.

Example 3.2

Some doctors believe that a person can lose 5 pounds, on the average, in a month by reducing his/her fat intake and by exercising consistently. Suppose weight loss has a normal distribution. Let X = the amount of weight lost (in pounds) by a person in a month. Use a standard deviation of 2 pounds. XN (5, 2). Fill in the blanks.

Problem 1

Suppose a person lost 10 pounds in a month. The z-score when x = 10 pounds is z = 2.5 (verify). This z-score tells you that x = 10 is ________ standard deviations to the ________ (right or left) of the mean ________ ( What is the mean?).

Problem 2

Suppose a person gained 3 pounds (a negative weight loss). Then z ________. This z-score tells you that x = −3 is ________ standard deviations to the ________ (right or left) of the mean.

Suppose the random variables X and Y have the following normal distributions: X ∼ N (5, 6) and Y ∼ N (2, 1). If x = 17, then z = 2. (This was previously shown.) If y = 4, what is z?
z=\frac{y-\mu }{\sigma }=\frac{4-2}{1}=2where µ = 2 and σ = 1.

The z-score for y = 4 is z = 2. This means that 4 is z = 2 standard deviations to the right of the mean. Therefore, x = 17 and y = 4 are both 2 (of their) standard deviations to the right of their respective means.

The z-score allows us to compare data that are scaled differently. To understand the concept, suppose X N (5, 6) represents weight gains for one group of people who are trying to gain weight in a 6 week period and Y N (2, 1) measures the same weight gain for a second group of people. A negative weight gain would be a weight loss. Since x = 17 and y = 4 are each 2 standard deviations to the right of their means, they represent the same weight gain relative to their means.

The Empirical Rule

If X is a random variable and has a normal distribution with mean µ and standard deviation σ then the Empirical Rule says (See the Figure 3.1 below)

  • About 68.27% of the x values lie between -1σ and +1σ of the mean µ (within 1 standard deviation of the mean).
  • About 95.45% of the x values lie between -2σ and +2σ of the mean µ (within 2 standard deviations of the mean).
  • About 99.73% of the x values lie between -3σ and +3σ of the mean µ (within 3 standard deviations of the mean). Notice that almost all the x values lie within 3 standard deviations of the mean.
  • The z-scores for +1σ and 1σ are +1 and -1, respectively.
  • The z-scores for +2σ and 2σ are +2 and -2, respectively.
  • The z-scores for +3σ and 3σ are +3 and -3 respectively.
media/image62.png

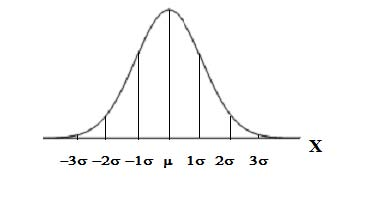

Figure 3.1 The Empirical Rule

The Empirical Rule is also known as the 68-95-99.7 Rule.

Example 3.3

Suppose X has a normal distribution with mean 50 and standard deviation 6.

  • About 68.27% of the x values lie between -1σ = (-1)(6) = -6 and 1σ = (1)(6) = 6 of the mean 50. The values 50 - 6 = 44 and 50 + 6 = 56 are within 1 standard deviation of the mean 50. The z-scores are -1 and +1 for 44 and 56, respectively.
  • About 95.45% of the x values lie between -2σ = (-2)(6) = -12 and 2σ = (2)(6) = 12 of the mean 50. The values 50 -12 = 38 and 50 + 12 = 62 are within 2 standard deviations of the mean 50. The z-scores are -2 and 2 for 38 and 62, respectively.
  • About 99.73% of the x values lie between -3σ = (-3)(6) = -18 and 3σ = (3)(6) = 18 of the mean 50. The values 50 - 18 = 32 and 50 + 18 = 68 are within 3 standard deviations of the mean 50. The z-scores are -3 and +3 for 32 and 68, respectively.
