Example 10.14: pseudocode: While
count assigned zeroWhile count < 5 Display "I love computers!" Increment countEndwhile

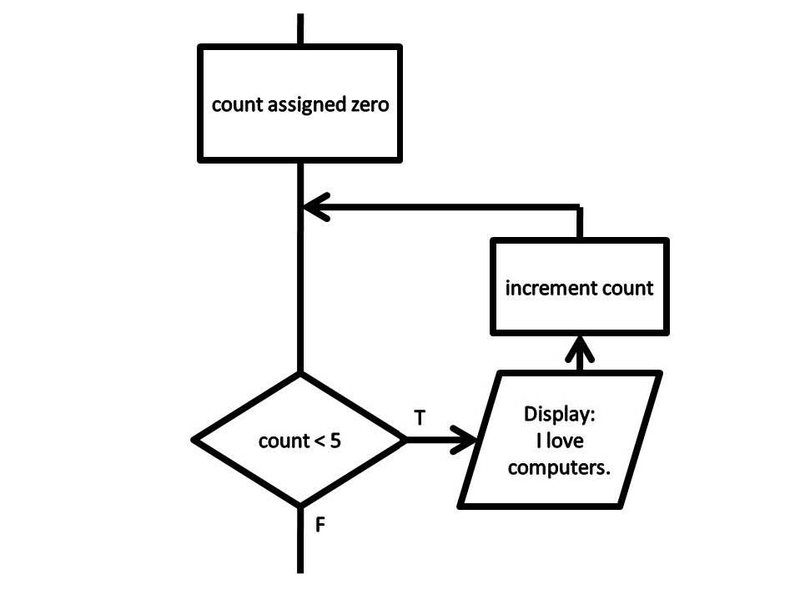

Figure 10.16 While control structure
Example 10.15: pseudocode: For
For x starts at 0, x < 5, increment x Display "Are we having fun?"Endfor
The for loop does not have a standard fowcharting method and you will find it done in different ways. The for loop as a counting loop can be fowcharted similar to the while loop as a counting loop.

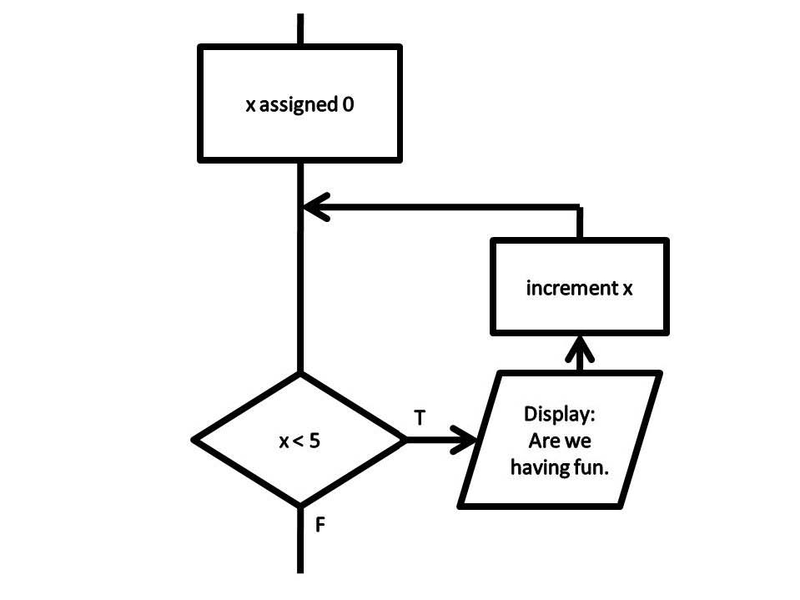

Figure 10.17 For control structure
Example 10.16: pseudocode: Do While
count assigned five Do Display "Blast off is soon!" Decrement countWhile count > zero
Figure 10.18 Do While control structure
Example 10.17: pseudocode: Repeat Until
count assigned fiveRepeat Display "Blast off is soon!" Decrement countUntil count < one

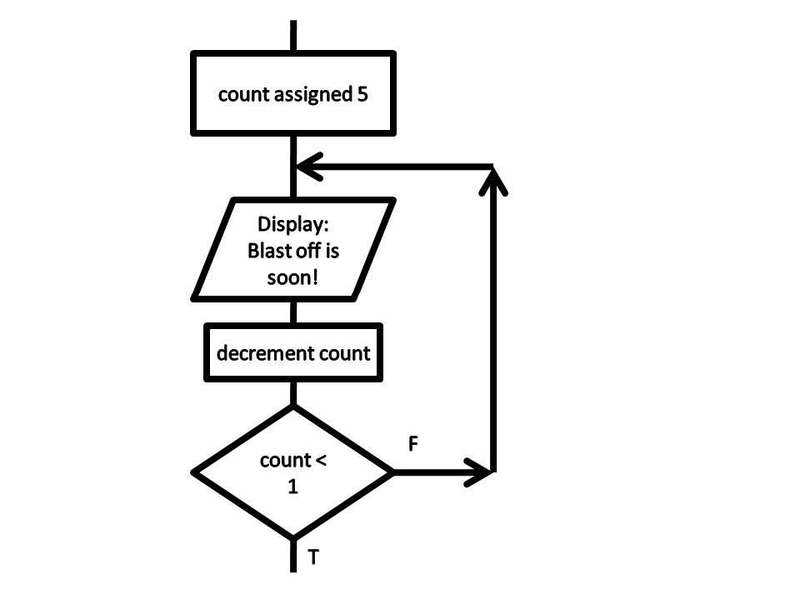

Figure 10.19 Repeat Until control structure
