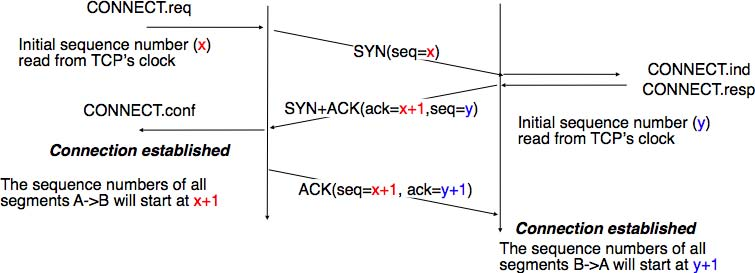

TCP connection establishment

Denial of Service attacks

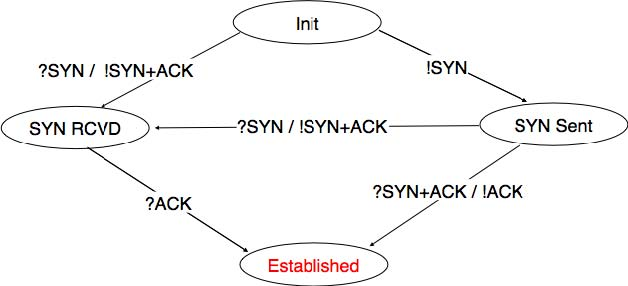

When a TCP entity opens a TCP connection, it creates a Transmission Control Block (TCB). The TCB contains the entire state that is maintained by the TCP entity for each TCP connection. During connection establishment, the TCB contains the local IP address, the remote IP address, the local port number, the remote port number, the current local sequence number, the last sequence number received from the remote entity. Until the mid 1990s, TCP implementations had a limit on the number of TCP connections that could be in the SYN RCVD state at a given time. Many implementations set this limit to about 100 TCBs. This limit was considered sufficient even for heavily load http servers given the small delay between the reception of a SYN segment and the reception of the ACK segment that terminates the establishment of the TCP connection. When the limit of 100 TCBs in the SYN Rcvd state is reached, the TCP entity discards all received TCP SYN segments that do not correspond to an existing TCB. This limit of 100 TCBs in the SYN Rcvd state was chosen to protect the TCP entity from the risk of overloading its memory with too many TCBs in the SYN Rcvd state. However, it was also the reason for a new type of Denial of Service (DoS) attack RFC 4987. A DoS attack is defined as an attack where an attacker can render a resource unavailable in the network. For example, an attacker may cause a DoS attack on a 2 Mbps link used by a company by sending more than 2 Mbps of packets through this link. In this case, the DoS attack was more subtle. As a TCP entity discards all received SYN segments as soon as it has 100 TCBs in the SYN Rcvd state, an attacker simply had to send a few 100 SYN segments every second to a server and never reply to the received SYN+ACK segments. To avoid being caught, attackers were of course sending these SYN segments with a different address than their own IP address a. On most TCP implementations, once a TCB entered the SYN Rcvd state, it remained in this state for several seconds, waiting for a retransmission of the initial SYN segment. This attack was later called a SYN flood attack and the servers of the ISP named panix were among the first to be affected by this attack. To avoid the SYN flood attacks, recent TCP implementations no longer enter the SYN Rcvd state upon reception of a SYN segment. Instead, they reply directly with a SYN+ACK segment and wait until the reception of a valid ACK. This implementation trick is only possible if the TCP implementation is able to verify that the received ACK segment acknowledges the SYN+ACK segment sent earlier without storing the initial sequence number of this SYN+ACK segment in a TCB. The solution to solve this problem, which is known as SYN cookies is to compute the 32 bits of the ISN as follows :

• the high order bits contain the low order bits of a counter that is incremented slowly
• the low order bits contain a hash value computed over the local and remote IP addresses and ports and a random secret only known to the server

Retransmitting the first SYN segment

As IP provides an unreliable connectionless service, the SYN and SYN+ACK segments sent to open a TCP connection could be lost. Current TCP implementations start a retransmission timer when they send the first SYN segment. This timer is often set to three seconds for the first retransmission and then doubles after each retransmission RFC 2988. TCP implementations also enforce a maximum number of retransmissions for the initial SYN segment.
