Frequency and Interval

22 July, 2019 - 10:18
Available under Creative Commons-ShareAlike 4.0 International License. Download for free at

The names of the various intervals, and the way they are written on the staff, are mostly the result of a long history of evolving musical notation and theory. But the actual intervals - the way the notes sound - are not arbitrary accidents of history. Like octaves, the other intervals are also produced by the harmonic series. Recall that the frequencies of any two pitches that are one octave  apart have a 2:1 ratio. (See Harmonic Series I to review this.) Every other interval  that musicians talk about can also be described as having a particular frequency ratio.

To find those ratios, look at a harmonic series written in common notation.

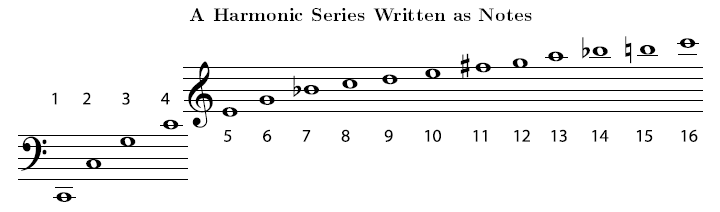

Figure 4.40 A Harmonic Series Written as Notes

Look at the third harmonic in Figure 4.40. Its frequency is three times the frequency of the first harmonic (ratio 3:1). Remember, the frequency of the second harmonic is two times that of the first harmonic (ratio 2:1). In other words, there are two waves of the higher C for every one wave of the lower C, and three waves of the third-harmonic G for every one wave of the fundamental. So the ratio69 of the frequencies of the second to the third harmonics is 2:3. (In other words, two waves of the C for every three of the G.) From the harmonic series shown above, you can see that the interval (Section 4.5) between these two notes is a perfect fifth . The ratio of the frequencies of all perfect fifths is 2:3.

Exercise 4.16:

  1. The interval between the fourth and sixth harmonics (frequency ratio 4:6) is also a fifth. Can you explain this?
  2. What other harmonics have an interval of a fifth?
  3. Which harmonics have an interval of a fourth?
  4. What is the frequency ratio for the interval of a fourth?
Note: If you have been looking at the harmonic series above closely, you may have noticed that some notes that are written to give the same interval have different frequency ratios. For example, the interval between the seventh and eighth harmonics is a major second, but so are the intervals between 8 and 9, between 9 and 10, and between 10 and 11. But 7:8, 8:9, 9:10, and 10:11, although they are pretty close, are not exactly the same. In fact, modern Western music uses the equal temperament tuning system, which divides the octave into twelve notes that are equally far apart. (They do have the same frequency ratios, unlike the half steps in the harmonic series.) The positive aspect of equal temperament (and the reason it is used) is that an instrument will be equally in tune in all keys. The negative aspect is that it means that all intervals except for octaves are slightly out of tune with regard to the actual harmonic series. For more about equal temperament, see Tuning Systems. Interestingly, musicians have a tendency to revert to true harmonics when they can (in other words, when it is easy to fine-tune each note). For example, an a capella choral group, or a brass ensemble, may find themselves singing or playing perfect fourths and fifths, "contracted" major thirds and "expanded" minor thirds, and half and whole steps of slightly varying sizes.
