Data Parallelism

26 July, 2019 - 09:47
Available under Creative Commons-ShareAlike 4.0 International License. Download for free at

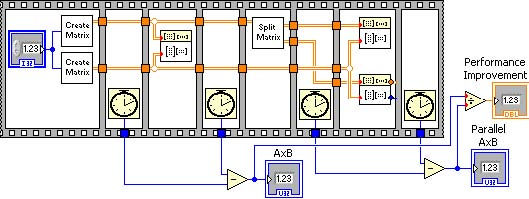

Matrix multiplication is a compute intensive operation that can leverage data parallelism. Figure Data Parallelism shows a G program with 8 sequential frames to demonstrate the performance improvement via data parallelism.

Figure 10.2 Data Parallelism

The Create Matrix function generates a square matrix based of size indicated by Size containing random numbers between 0 and 1. The Create Matrix function is shown in Figure Creating a Square Matrix.

Figure 10.3 Creating a Square Matrix

The Split Matrix function determines the number of rows in the matrix and shifts right the resulting number of rows by one (integer divide by 2). This value is used to split the input matrix into the top half and bottom half matrices. The Split Matrix function is shown in Figure Split Matrix into Top & Bottom.

Figure 10.4 Split Matrix into Top & Bottom
Sequence Frame Operation Description
First Frame Generates two square matrices initialized with random numbers
Second Frame Records start time for single core matrix multiply
Thrid Frame Performs single core matrix multiply
Fourth Frame Records stop time of single core matrix multiply
Fifth Frame Splits the matrix into top and bottom matrices
Sixth Frame Records start time for multicore matrix multiply
Seventh Frame Performs multicore matrix multiply
Eighth Frame Records stop time of multicore matrix multiply

The rest of the calculations determine the execution time in milliseconds of the single core and multi-core matrix multiply operations and the performance improvement of using data parallelism in a multicore computer.

The program was executed in a dual core 1.83 GHz laptop. The results are shown in Figure Data Parallelism Performance Improvement. By leveraging data parallelism, the same operation has nearly a 2x performance improvement. Similar performance benefts can be obtained with higher multicore processors

Figure 10.5 Data Parallelism Performance Improvement
