Normal Distribution: Calculations of Probabilities

26 April, 2016 - 14:29
Available under Creative Commons-ShareAlike 4.0 International License. Download for free at http://cnx.org/contents/733d1554-5d75-4798-9e54-7dcdc1ee5690@5.40

Probabilities are calculated by using technology. There are instructions in the chapter for the TI-83+ and TI-84 calculators.

Note: In the Table of Contents for Collaborative Statistics, entry 15. Tables has a link to a table of normal probabilities. Use the probability tables if so desired, instead of a calculator. The tables include instructions for how to use then.

Example 3.4

If the area to the left is 0.0228, then the area to the right is 1 − 0.0228 = 0.9772.

Example 3.5

The final exam scores in a statistics class were normally distributed with a mean of 63 and a standard deviation of 5.

Please see Problem 1-4.

Problem 1

Find the probability that a randomly selected student scored more than 65 on the exam.

Solution
Let X = a score on the final exam. X∼N (63, 5), where µ = 63 and σ = 5 Draw a graph.
Then, find P (x> 65).
P (x> 65) = 0.3446 (calculator or computer)

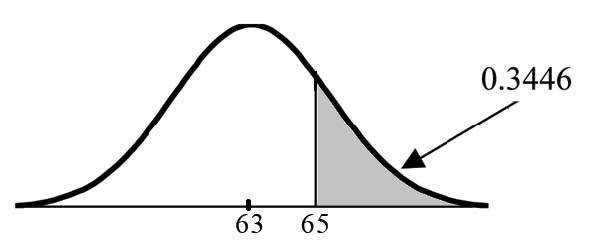

media/image64.pngThe probability that one student scores more than 65 is 0.3446. Using the TI-83+ or the TI-84 calculators, the calculation is as follows. Go into 2nd DISTR. After pressing 2nd DISTR, press 2:normalcdf. The syntax for the instructions are shown below. normalcdf(lower value, upper value, mean, standard deviation) For this problem: normal cdf(65,1E99,63,5) = 0.3446. You get 1E99 ( 1099) by pressing 1, the EE key (a 2nd key) and then 99. Or, you can enter 10-99 instead. The number 1099 is way out in the right tail of the normal curve. We are calculating the area between 65 and 1099 . In some instances, the lower number of the area might be -1E99 ( −1099). The number −1099 is way out in the left tail of the normal curve.


Historical Note: The TI probability program calculates a z-score and then the probability from the z-score. Before technology, the z-score was looked up in a standard normal probability table (because the math involved is too cumbersome) to find the probability. In this example, a standard normal table with area to the left of the z-score was used. You calculate the z-score and look up the area to the left. The probability is the area to the right.

z=\frac{65-63}{5}=0.4
Area to the left is 0.6554. P (x> 65) = P (z> 0.4) = 1 − 0.6554 = 0.3446


Problem 2

Find the probability that a randomly selected student scored less than 85.

Solution
Draw a graph. Then find P (x< 85). Shade the graph. P (x< 85) = 1 (calculator or computer) The probability that one student scores less than 85 is approximately 1 (or 100%). The TI-instructions and answer are as follows: normalcdf(0,85,63,5) = 1 (rounds to 1)

Problem 3

Find the 90th percentile (that is, find the score k that has 90 % of the scores below k and 10% of the scores above k).

Solution
Find the 90th percentile. For each problem or part of a problem, draw a new graph. Draw the x-axis. Shade the area that corresponds to the 90th percentile.

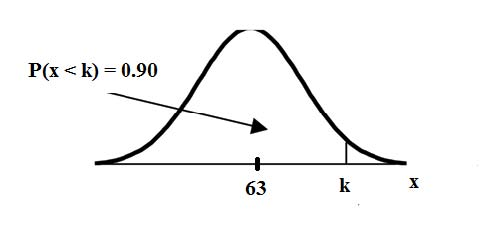

Let k = the 90th percentile. k is located on the x-axis. P (x<k) is the area to the left of k. The 90th percentile k separates the exam scores into those that are the same or lower than k and those that are the same or higher. Ninety percent of the test scores are the same or lower than k and 10% are the same or higher. k is often called a critical value.

k = 69.4 (calculator or computer)

media/image66.png
The 90th percentile is 69.4. This means that 90% of the test scores fall at or below 69.4 and 10% fall at or above. For the TI-83+ or TI-84 calculators, use invNorm in 2nd DISTR. invNorm(area to the left, mean, standard deviation) For this problem, invNorm(0.90,63,5) = 69.4

Problem 4

Find the 70th percentile (that is, find the score k such that 70% of scores are below k and 30% of the scores are above k).

Solution
Find the 70th percentile.
Draw a new graph and label it appropriately. k = 65.6
The 70th percentile is 65.6. This means that 70% of the test scores fall at or below 65.5 and 30% fall at or above.
invNorm(0.70,63,5) = 65.6

Example 3.6

A computer is used for office work at home, research, communication, personal finances, education, entertainment, social networking and a myriad of other things. Suppose that the average number of hours a household personal computer is used for entertainment is 2 hours per day. Assume the times for entertainment are normally distributed and the standard deviation for the times is half an hour.

Please see problem 1-2.

Problem 1

Find the probability that a household personal computer is used between 1.8 and 2.75 hours per day.

Solution
Let X = the amount of time (in hours) a household personal computer is used for entertainment. x∼N (2, 0.5) where µ = 2 and σ = 0.5.
Find P (1.8 <x< 2.75).

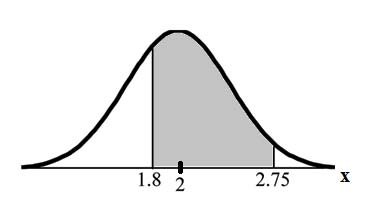

The probability for which you are looking is the area between x = 1.8 and x = 2.75.  P (1.8 <x< 2.75) = 0.5886
media/image67.png
normalcdf(1.8,2.75,2,0.5) = 0.5886
The probability that a household personal computer is used between 1.8 and 2.75 hours per day for entertainment is 0.5886.

Problem 2

Find the maximum number of hours per day that the bottom quartile of households use a personal computer for entertainment.

Solution

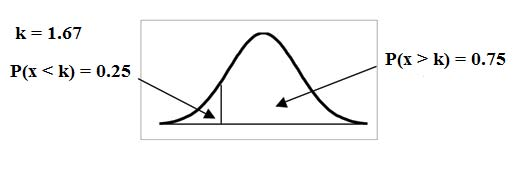

To find the maximum number of hours per day that the bottom quartile of households uses a personal computer for entertainment,find the 25th percentile, k, where P (x<k) = 0.25.
media/image68.pnginvNorm(0.25,2,.5) = 1.66
The maximum number of hours per day that the bottom quartile of households uses a personal computer for entertainment is 1.66 hours.
