Connectors

19 January, 2016 - 11:41

Sometimes a fowchart is broken into two or more smaller fowcharts. This is usually done when a fowchart does not ft on a single page, or must be divided into sections. A connector symbol, which is a small circle with a letter or number inside it, allows you to connect two fowcharts on the same page. A connector symbol that looks like a pocket on a shirt, allows you to connect to a fowchart on a different page.

media/image15.png
Figure 10.4 On-Page Connector
media/image16.png

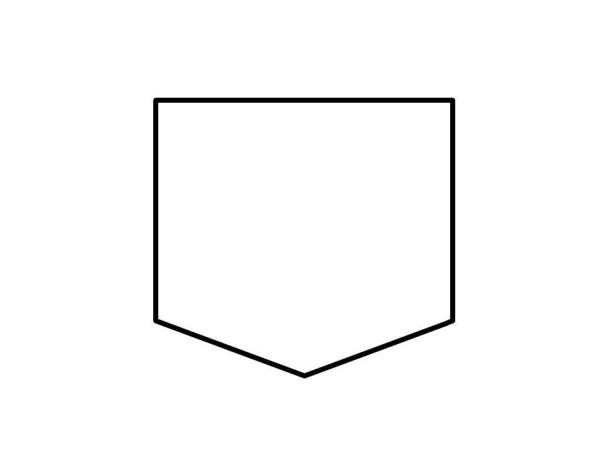

Figure 10.5 Off-Page Connector
